bflb_timer.h File Reference
#include "bflb_core.h"

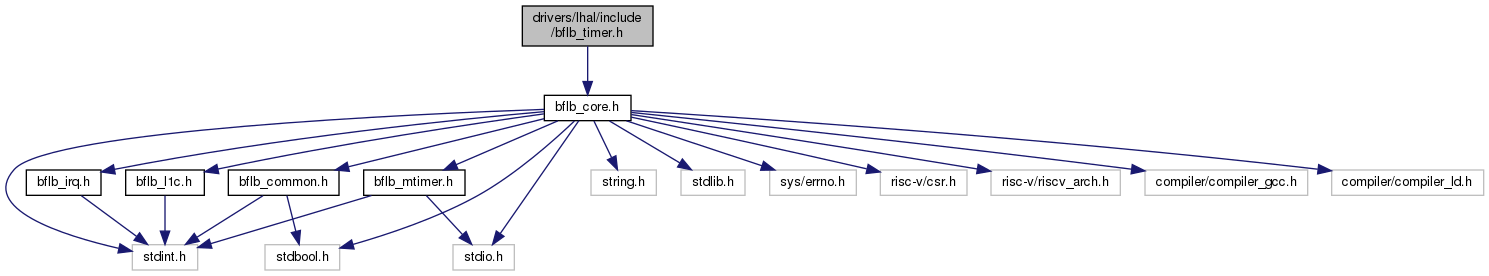

Include dependency graph for bflb_timer.h:
Go to the source code of this file.
Data Structures | |
| struct | bflb_timer_config_s |
| TIMER configuration structure. More... | |
| struct | bflb_timer_capture_config_s |
| TIMER capture configuration structure. More... | |
Macros | |
| #define | TIMER_CLKSRC_BCLK 0 |
| #define | TIMER_CLKSRC_32K 1 |
| #define | TIMER_CLKSRC_1K 2 |
| #define | TIMER_CLKSRC_XTAL 3 |
| #define | TIMER_CLKSRC_GPIO 4 |
| #define | TIMER_CLKSRC_NO 5 |
| #define | TIMER_COUNTER_MODE_PROLOAD 0 |
| #define | TIMER_COUNTER_MODE_UP 1 |
| #define | TIMER_COMP_ID_0 0 |
| #define | TIMER_COMP_ID_1 1 |
| #define | TIMER_COMP_ID_2 2 |
| #define | TIMER_COMP_NONE 3 |
| #define | TIMER_CAPTURE_POLARITY_POSITIVE 0 |
| #define | TIMER_CAPTURE_POLARITY_NEGATIVE 1 |
Functions | |
| void | bflb_timer_init (struct bflb_device_s *dev, const struct bflb_timer_config_s *config) |
| Initialize timer. More... | |
| void | bflb_timer_deinit (struct bflb_device_s *dev) |
| Deinitialize timer. More... | |
| void | bflb_timer_start (struct bflb_device_s *dev) |
| Start timer. More... | |
| void | bflb_timer_stop (struct bflb_device_s *dev) |
| Stop timer. More... | |
| void | bflb_timer_set_preloadvalue (struct bflb_device_s *dev, uint32_t val) |
| Set timer preload value. More... | |
| void | bflb_timer_set_compvalue (struct bflb_device_s *dev, uint8_t cmp_no, uint32_t val) |
| Set compare value of corresponding compare id. More... | |
| uint32_t | bflb_timer_get_compvalue (struct bflb_device_s *dev, uint8_t cmp_no) |
| Get compare value of corresponding compare id. More... | |
| uint32_t | bflb_timer_get_countervalue (struct bflb_device_s *dev) |
| Get timer counter value. More... | |
| void | bflb_timer_compint_mask (struct bflb_device_s *dev, uint8_t cmp_no, bool mask) |
| Enable or disable timer interrupt of corresponding compare id. More... | |
| bool | bflb_timer_get_compint_status (struct bflb_device_s *dev, uint8_t cmp_no) |
| Get timer interrupt status of corresponding compare id. More... | |
| void | bflb_timer_compint_clear (struct bflb_device_s *dev, uint8_t cmp_no) |
| Clear timer interrupt status of corresponding compare id. More... | |
| void | bflb_timer_capture_init (struct bflb_device_s *dev, const struct bflb_timer_capture_config_s *config) |
| uint32_t | bflb_timer_capture_get_pulsewidth (struct bflb_device_s *dev) |
